Identify and describe the aerodynamic control surfaces on the aircraft of your choice, and explain how they operate to control its attitude and direction of flight.

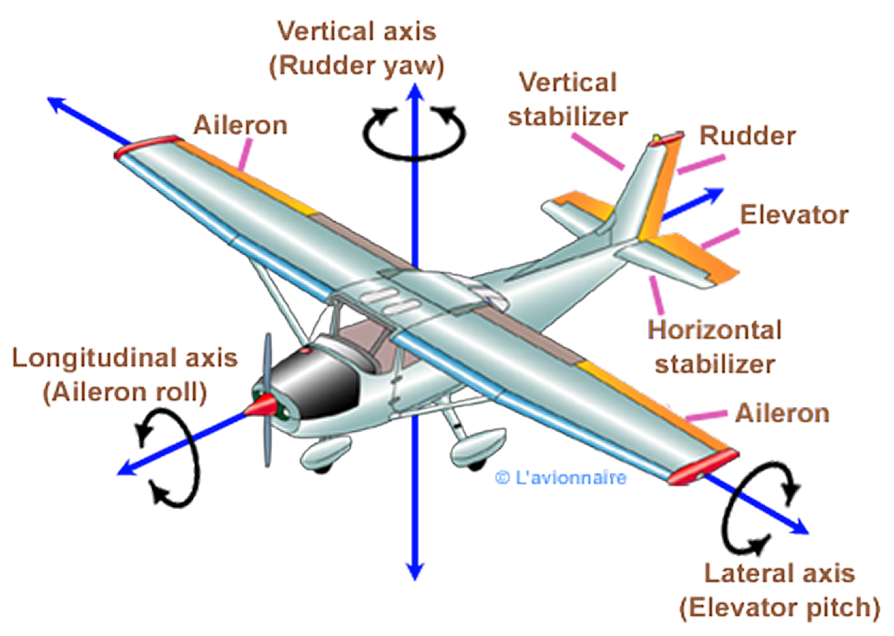

The primary control surfaces are the parts of the plane that the pilot uses to control the attitude (the orientation of the plane) and the direction of flight. There are four main control surfaces that work together to help the pilot steer and stabilize the aircraft in the air.
Let’s break each one down:
Ailerons (Roll Control)
Location
Ailerons are located on the trailing edges of the wings, usually near the wingtips.
Function
Ailerons control the roll of the aircraft, which is when the airplane tilts side to side along its longitudinal axis (from nose to tail).
How they work
When the pilot moves the control yoke or stick left or right, the ailerons move in opposite directions.
If the pilot turns the yoke to the right, the right aileron goes up, and the left aileron goes down. This causes the right wing to generate less lift (due to the upward aileron), while the left wing generates more lift (due to the downward aileron). This difference in lift causes the airplane to roll to the right. Similarly, turning the yoke to the left causes the opposite effect, rolling the airplane to the left.
Effect on Attitude
Ailerons are primarily used to control roll and maintain level flight or to initiate a turn by banking the plane left or right.
Elevator (Pitch Control)
Location
The elevator is typically located on the horizontal stabilizer at the tail of the airplane.
Function
The elevator controls the pitch of the airplane, which is the up-and-down movement of the nose of the aircraft along its lateral axis (from wingtip to wingtip).
How they work
When the pilot pulls back on the yoke or stick, the elevator moves up, which pushes the tail of the plane down and causes the nose to rise, making the plane climb. When the pilot pushes forward on the yoke, the elevator moves down, causing the tail to rise and the nose to drop, making the plane descend.
Effect on Attitude
The elevator is responsible for controlling pitch, which directly affects the plane’s angle of attack and altitude. It determines whether the plane is climbing, descending, or flying level.
Rudder (Yaw Control)
Location
The rudder is located on the vertical stabilizer (the upright tail fin) of the airplane.
Function
The rudder controls the yaw of the airplane, which is the side-to-side movement of the nose along the vertical axis (from top to bottom).
How they work
When the pilot pushes the rudder pedals to the right, the rudder moves to the right. This causes the nose of the airplane to yaw right. Pushing the left rudder pedal causes the nose to yaw left.
Effect on Attitude
The rudder helps the pilot maintain directional control (steering) of the aircraft, especially during turns or when flying in crosswinds. It also helps to keep the airplane coordinated in flight, preventing unwanted slipping or skidding.
Elevator Trim (Fine-tune Pitch)
Location
Elevator trim is also located on the horizontal stabilizer but is adjusted by a small wheel or control on the cockpit’s control panel.
Function
Elevator trim is also located on the horizontal stabilizer but is adjusted by a small wheel or control on the cockpit’s control panel.
How they work
When the pilot adjusts the trim, it changes the position of a small trim tab on the elevator, allowing for subtle adjustments in the airplane’s pitch.
If the plane is climbing too steeply, the pilot can adjust the trim to help maintain the desired attitude without constantly pulling back on the yoke.
Effect on Attitude
The elevator trim is used for fine-tuning the pitch of the airplane to make it more comfortable to fly over long distances or maintain a consistent attitude.
How they all work together
- Roll (controlled by the ailerons) makes the plane bank left or right.
- Pitch (controlled by the elevator) raises or lowers the nose, affecting climb and descent.
- Yaw (controlled by the rudder) makes the nose of the plane swing left or right, helping with directional control.
In a typical flight, when a pilot wants to turn, they will:
- Use the aileron to roll the plane in the direction of the turn.
- Adjust the elevator to maintain the desired altitude during the turn.
- Use the rudder to coordinate the turn, ensuring that the plane doesn’t "skid" or "slip."
Here is a great video that shows all of these controls in action!
In summary
- Ailerons: Control roll (banking the aircraft left or right).
- Elevator: Controls pitch (nose up or nose down).
- Rudder: Controls yaw (nose left or right).
- Trim: Fine-tunes the elevator to relieve pilot workload and maintain the desired pitch.
These primary control surfaces are essential for maintaining stable flight and changing the attitude and direction of the aircraft. By using all of them together, the pilot can maneuver the airplane safely and efficiently.
In summary
- Ailerons: Control roll (banking the aircraft left or right).
- Elevator: Controls pitch (nose up or nose down).
- Rudder: Controls yaw (nose left or right).
- Trim: Fine-tunes the elevator to relieve pilot workload and maintain the desired pitch.
These primary control surfaces are essential for maintaining stable flight and changing the attitude and direction of the aircraft. By using all of them together, the pilot can maneuver the airplane safely and efficiently.
